Our Capabilities

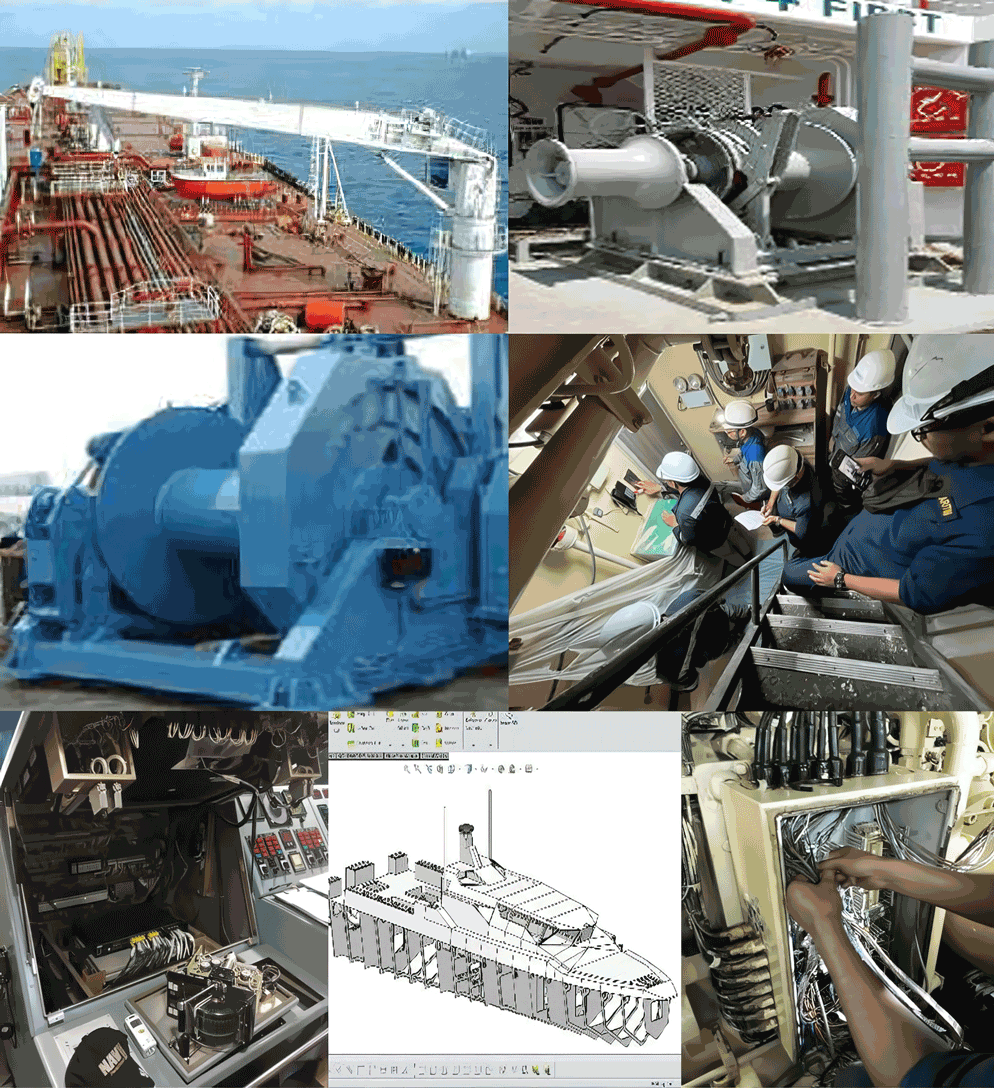

The capabilities of GE are divided into main areas, which include Maintenance, Repair, Overhaul, Shipbuilding, and System Solutions for marine and naval applications.

The capabilities envelopes are as derived below:

Marine

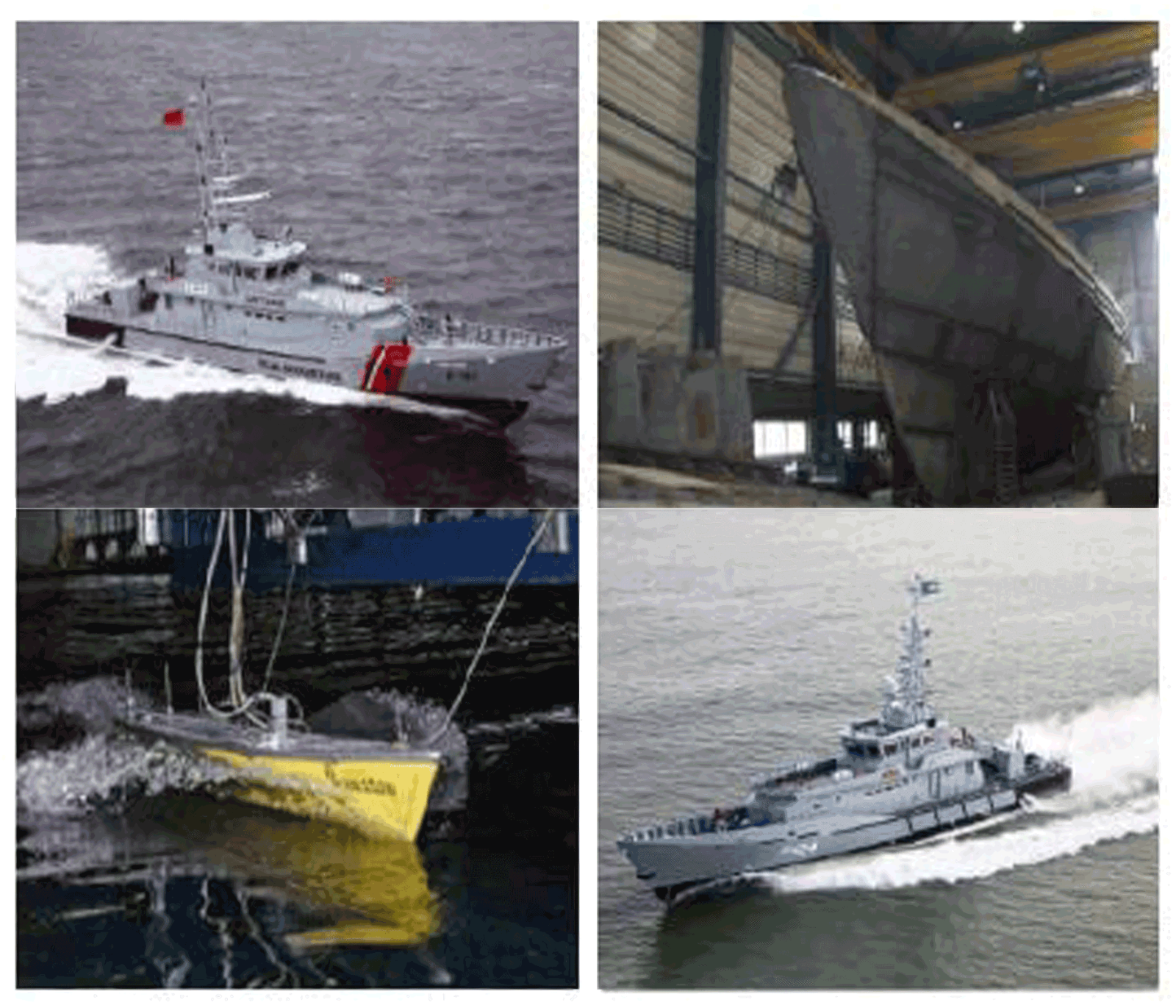

• New Shipbuilding

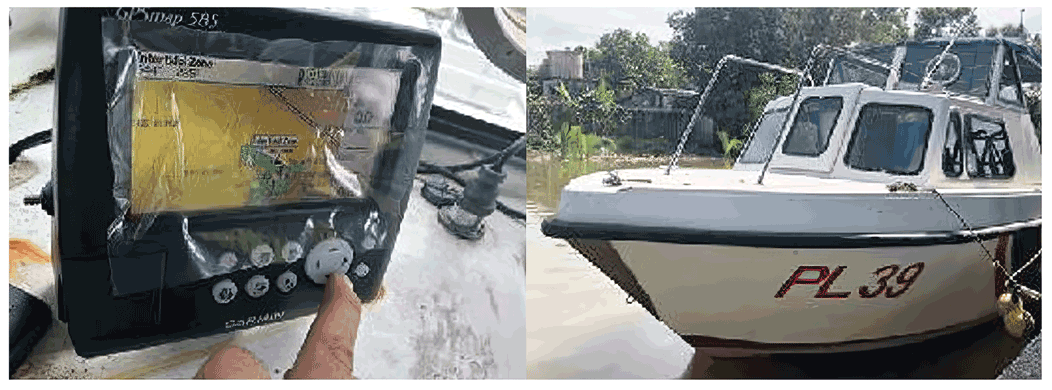

• Navigation

• Integrated Navigation System

• Magnetic Compass

• Integrated Communication System PABX

• Mechanical Waterjet System

• Boat Davit

• Laser Scanning Ship / Vessel 3D Modelling Data

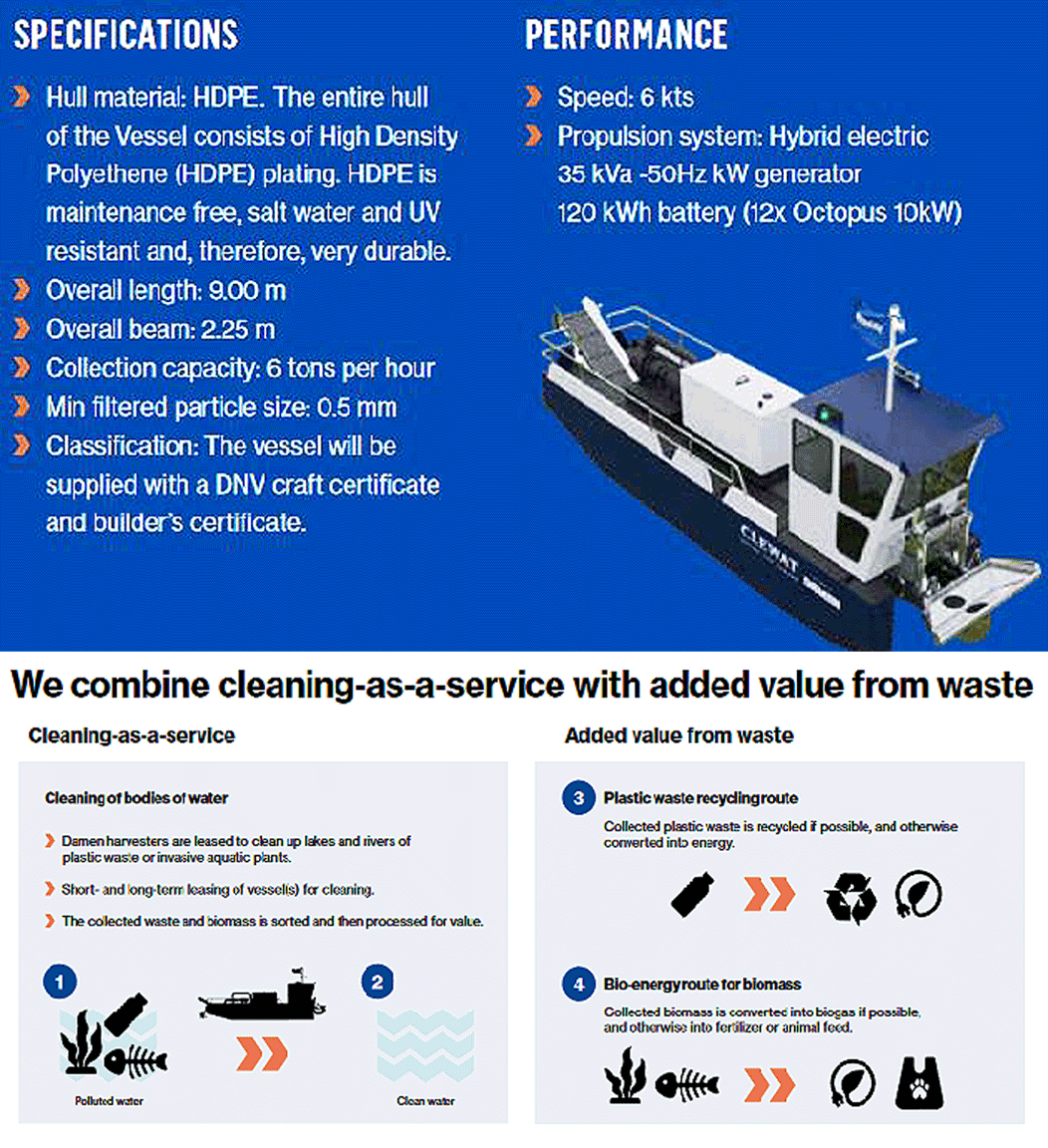

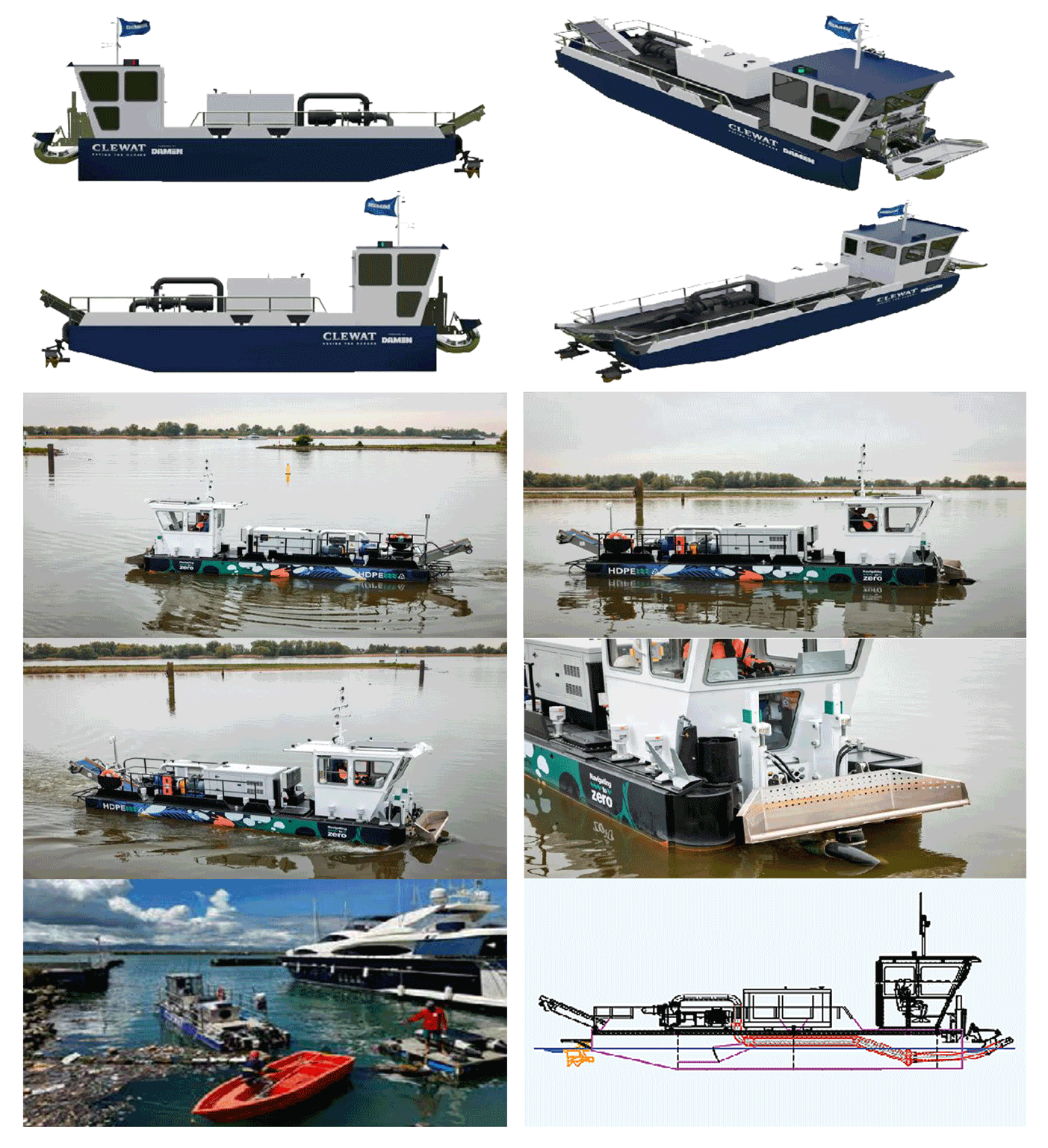

RIVER SCOOPER 902 HDPE The DRS 902-HDPE is a compact, container-sized hybrid craft, designed for zero-emission, fully electric operation in the future. The vessel is efficiently operated by just one person, but can accommodate two crew members comfortably. As an additional boost to sustainability, the River Scooper’s floaters are also made from fully recyclable HDPE.

1. Profit and impact: a perfect partnership - The River Scooper isn’t just a vessel; it’s a profitable investment that also makes a significant positive impact.

 2. Corporate Social Responsibility (CSR) - The River Scooper aligns with CSR objectives, allowing businesses to showcase their commitment to environmental stewardship.

 3. Supporting governments - Governments worldwide are increasingly recognising the importance of addressing plastic pollution.

 4. Advanced filtration system for efficiency - At the core of the River Scooper’s ability to clean up plastic waste is its advanced filtration system.

 5. Advanced filtration system for efficiency - At the core of the River Scooper’s ability to clean up plastic waste is its advanced filtration system.

 6. High capacity for maximum profit - The River Scooper boasts an impressive capacity to process plastic waste.

 7. Environmentally friendly for sustainable success - The entire vessel is designed to be fully recyclable when end-of-life is reached.

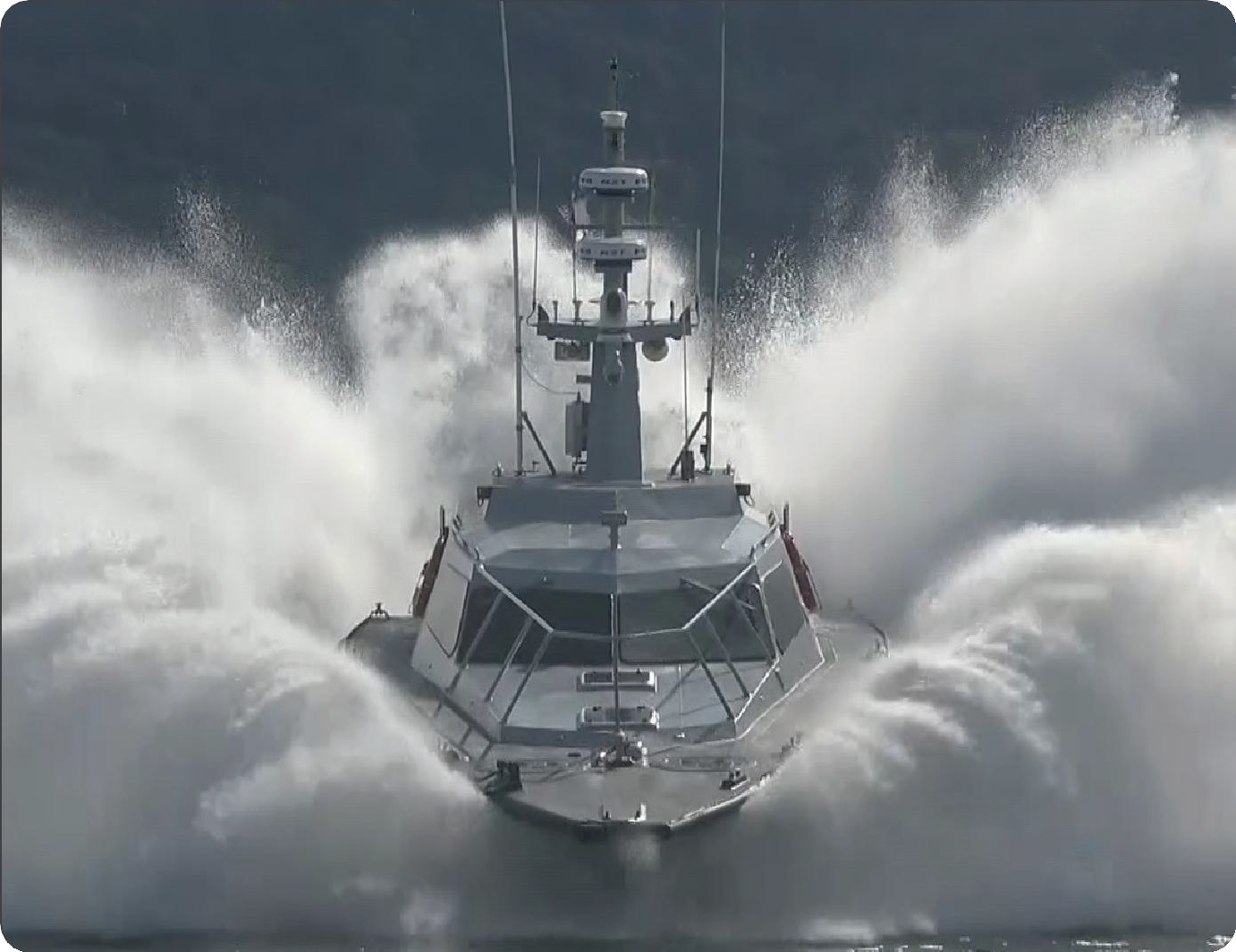

INTERCEPTOR 3007 FAST ATTACK AND INTERVENTION CRAFT

OFFSHORE PATROL VESSEL 2400

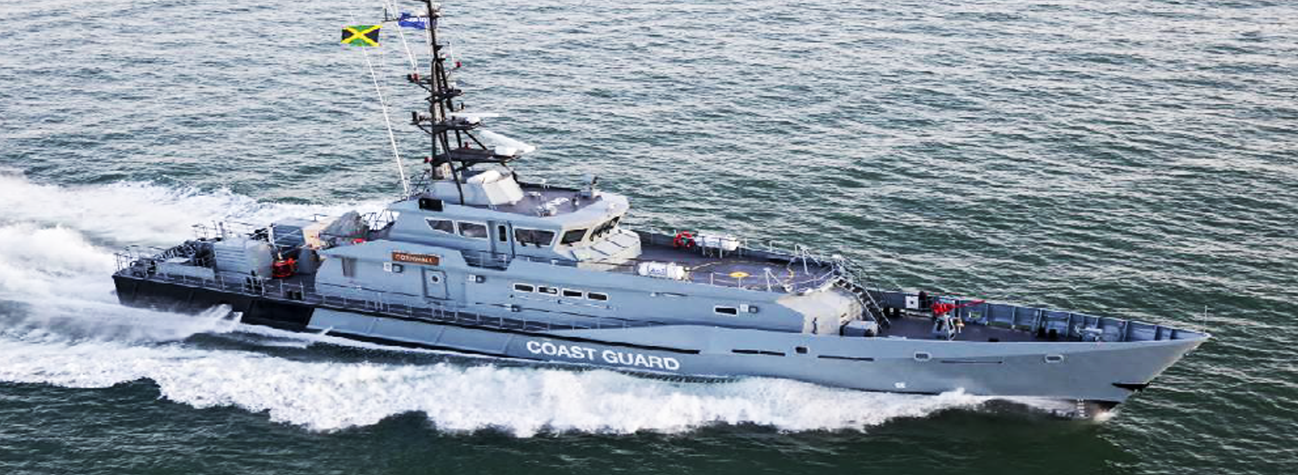

STAN PATROL 4207

A RELIABLE AND VERSATILE PLATFORM

The Stan Patrol is a dedicated Patrol design. The hull lines are optimised for very high performance, resulting in the vessel distinguishing itself with good sea-keeping performance. High-performance propeller tunnels are fitted to increase the propulsion efficiency and reduce vibration and noise levels. The spacious wheelhouse and accommodation areas are placed in the best position in the Vessel, where low Accelerations prevail in different sea states. With an excellent All-around view, the helmsman can safely handle the vessel in all conditions. The large aft deck is fitted with a slipway for launching and recovering daughter craft.

Main tasks:

Counter terrorism, anti-drug and anti-piracy EEZ protection and fishery inspection Search and rescue operations Human trafficking prevention Improved sea-keeping performance Improved safety Improved operability Reduced fuel consumption Compared to conventional ships Peak accelerations 50% less Operational costs 7% less Operability 68% more

Hull:

Length o.a. 42.8 m Beam o.a. 7.1 m Depth at sides 3.8 m Draught max 2.5 m Hull material Steel Superstructure Aluminium

Performance:

Speed up to 26.5 kn Range up to 2450 nm

Machinery:

Main engines 2x Caterpillar/MTU Propulsion 2x Controllable Pitch Propellers Total power up to 4700 bkW

Capacities:

Crew up to 18 persons Fuel Oil 29.8 m3 Fresh Water 6.3 m3 Waste Water 8.2 m3

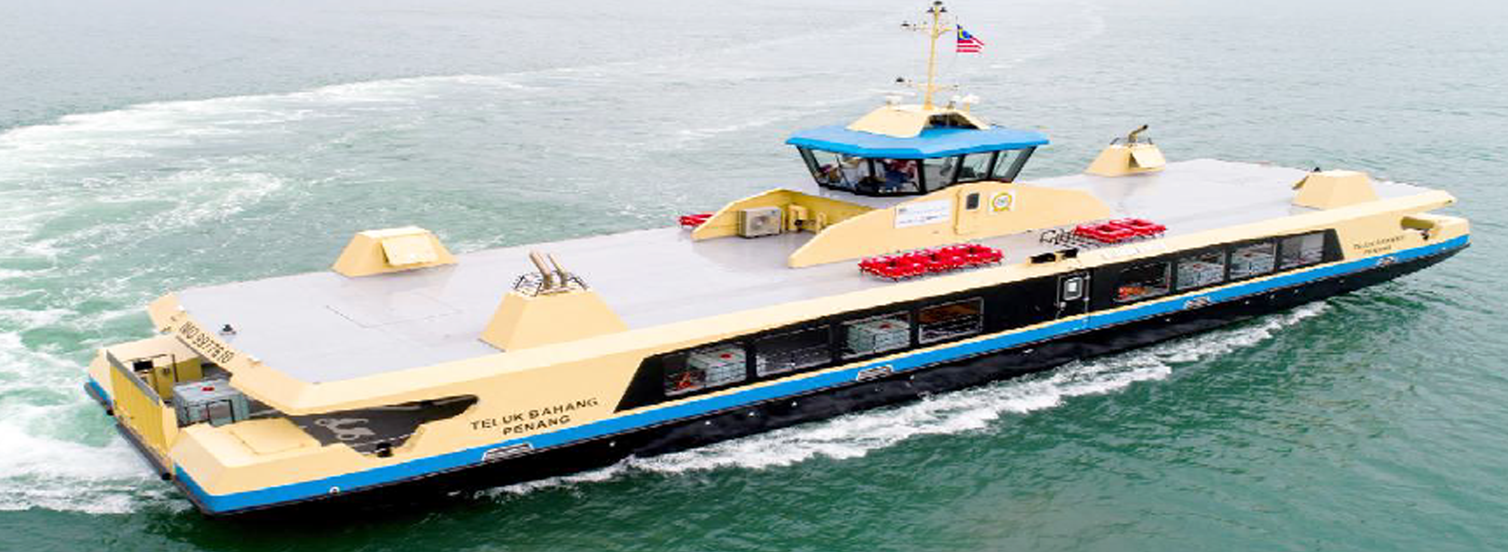

FERRY 3508

Damen Shipyards has been contracted by Penang Port Sdn Bhd., Malaysia, to build up to five ferries to replace the current fleet that has reached its end of life. The new vessels have been specially designed to meet the requirements of the client and its passengers. They will operate on the ferry route that links the Malaysian Peninsula (Butterworth) with Penang Island and its city of George Town, Malaysia’s third largest, just a ten-minute journey away. Designated the Damen Ferry 3508, the new class is designed to carry a maximum of 250 passengers both sitting and standing and 50 vehicles (scooters and motor bikes) in a mix of air-conditioned and open but sheltered areas. We are pleased to introduce Galtech Engineering’s capability in providing comprehensive engineering support and maintenance systems tailored for maritime operations, specifically for ferry systems such as Penang Ferry.

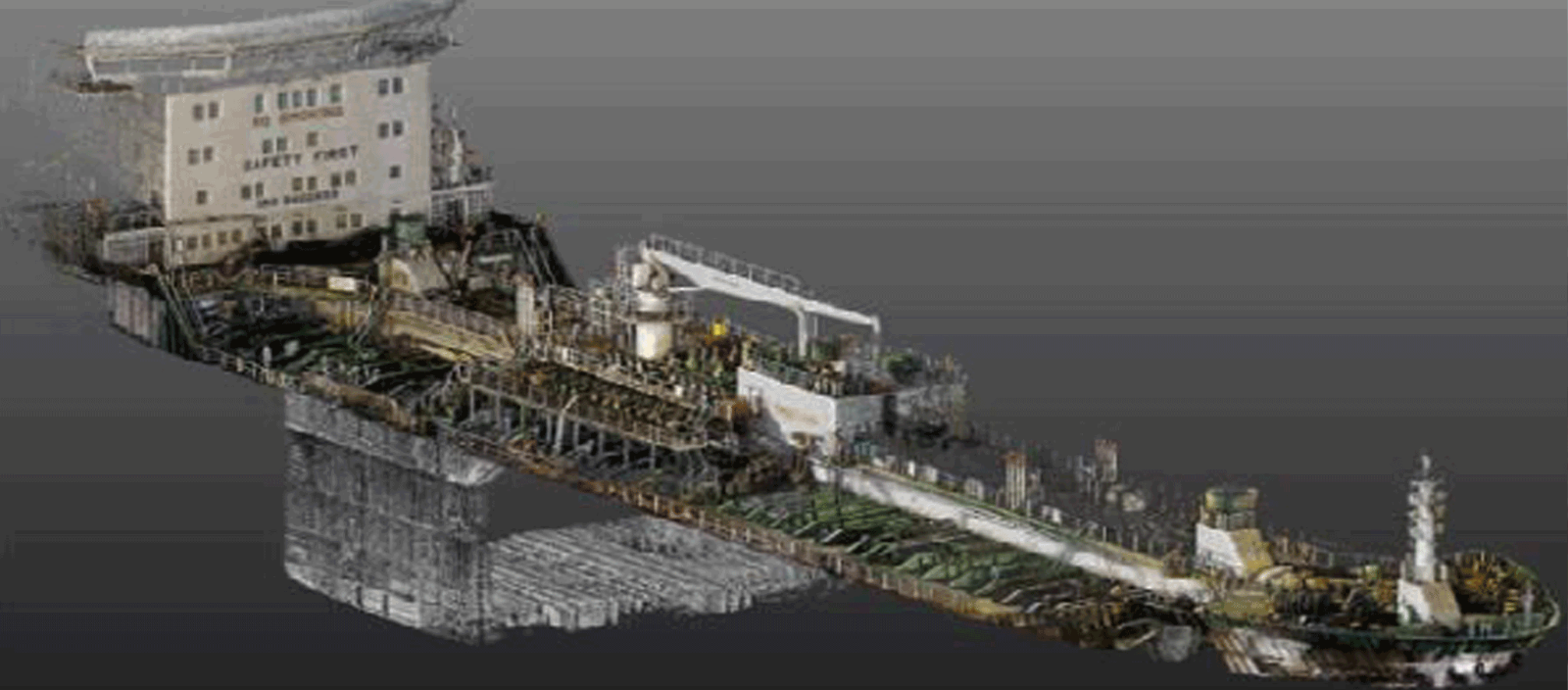

3D LASER SCANNING FOR SHIP / VESSEL 3D MODELLING DATA

ADVANCE 3D LASER SCANNING

FOR COMPREHENSIVE & DETAILED 3D SHIP / VESSEL MODELLING DATA With advances in software technology, 3D laser scanners that are equipped with built-in cameras Capturing accurate colourised geometry information can be used to analyse the true shape and any deformation of the tank structures. Older measurement techniques required multiple measurements and a lot of time. 3D scanning of tanks makes this process faster and more accurate millions of measurement points in a single scanning session.

3D DATA ENGINEERING & CONSULTATION

NICHE SHIP-SCANNING DATA ANALYSIS APPLICATION Focusing on niche-ship scanning, 3D Data analysis in providing precision Finite Element Analysis Data, enabling super fine Engineering data and input analysis for better and more efficient asset management.

SYSTEM INTEGRATION

MECHANICAL AND INSTRUMENTATION SYSTEM Maintenance and Upgrade, focusing on the ship/vessel Mechanical & Instrumentation system integration solutions, maintenance, enhancing performance, and reliability with the latest Maritime technology and innovation requirements.

ADVANCE 3D LASER SCANNING

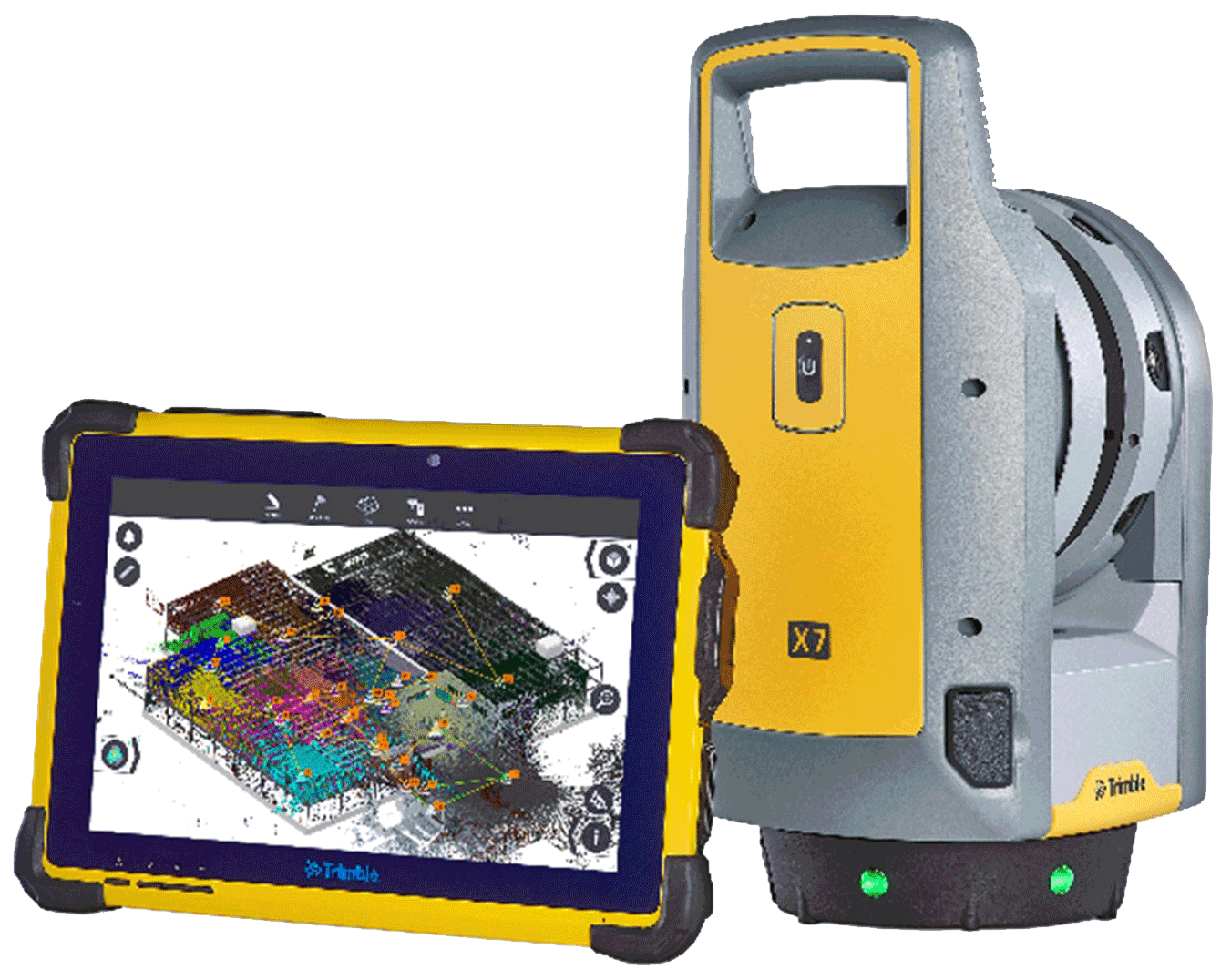

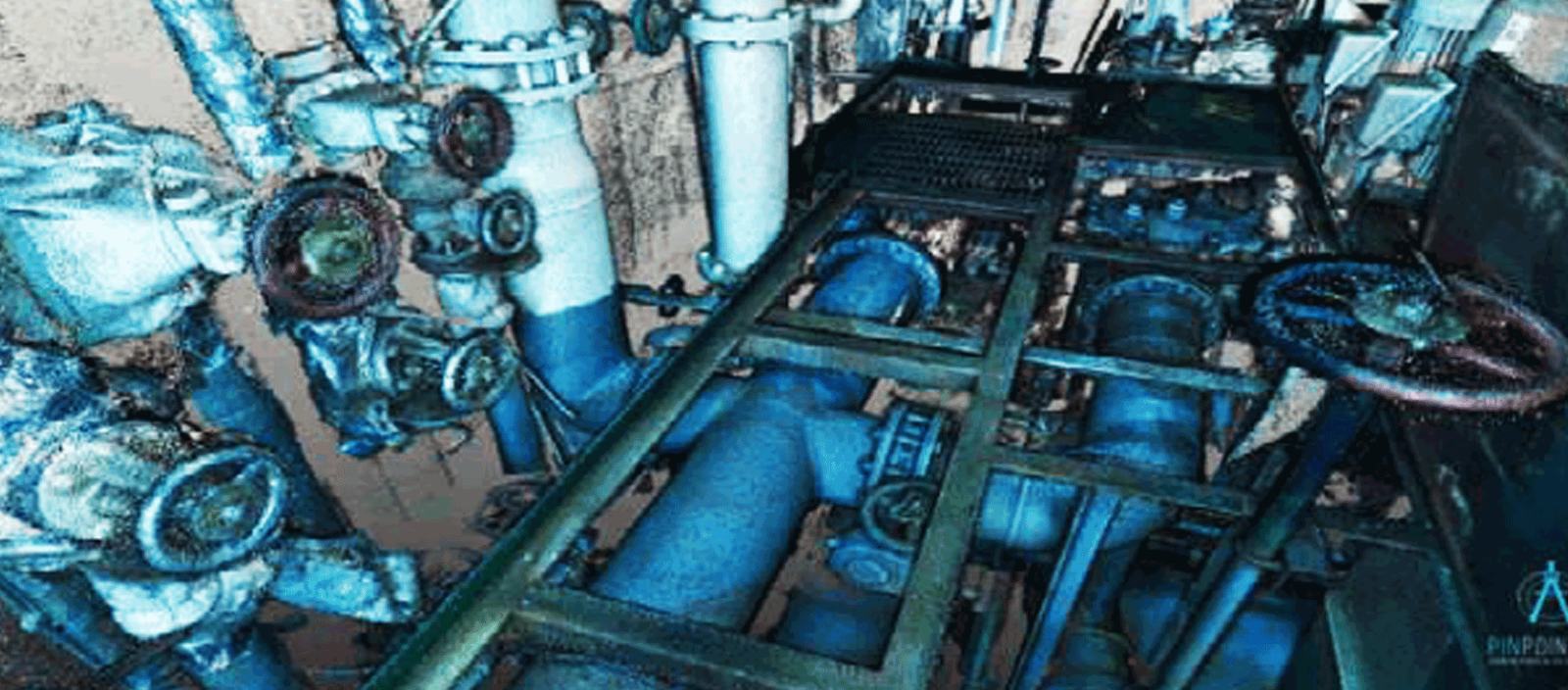

FOR COMPREHENSIVE & DETAILED 3D SHIP / VESSEL MODELLING DATA The Trimble® X7 is an easy-to-use, high-speed 3D laser scanning system with new innovations to simplify adoption and increase efficiency. Features like automatic calibration and in-field registration will ensure data quality and provide confidence in the field. Post-processed the data using Realworks Software, a software solution specifically designed for point cloud processing and analysis. Loading these registered scans into The software uses of automated cleaning tools to eliminate any extraneous noise and then renders the 3D dataset into a complete colourised model of the ship’s engine room and control room.

ADVANCE 3D LASER SCANNING

FOR COMPREHENSIVE & DETAILED 3D SHIP / VESSEL MODELLING DATA

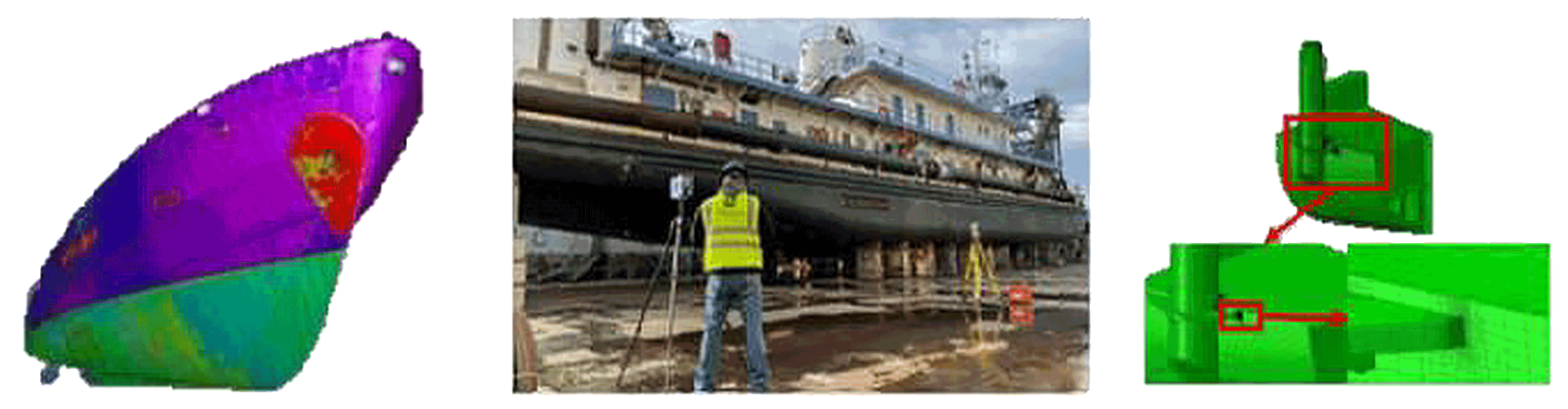

Example of niche-ship scanning 3D Data analysis in providing precision Finite Element Analysis Data, enabling super fine Engineering data and input analysis for better and more efficient asset management.

ADVANCE 3D LASER SCANNING

FOR COMPREHENSIVE & DETAILED 3D SHIP / VESSEL MODELLING DATA

Example of niche-ship scanning 3D Data analysis in providing precision Finite Element Analysis Data, enabling super fine Engineering data and input analysis for better and more efficient asset management.

3D DATA ENGINEERING & CONSULTATION

NICHE SHIP-SCANNING DATA ANALYSIS APPLICATION

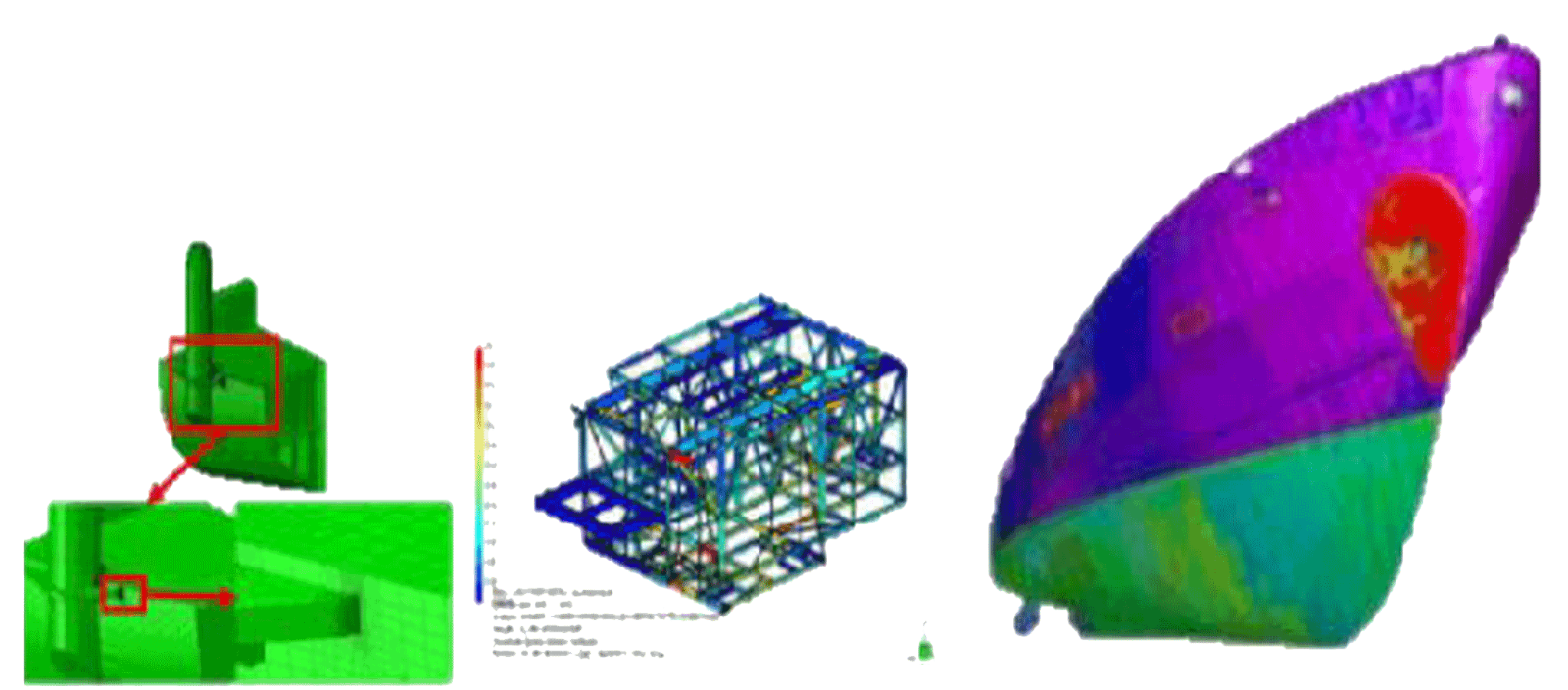

HULL & VESSEL 3D DATA ANALYSIS

• Full range from scantling, 3-HOLD models to full length model

• Naval Architecture (hull lines, capacity plan)

• Topsides: structural analyses & integration studies

• Flare design: modal analysis, vortex shedding & hull integration

• Global and local Finite Element Analysis

• Hull conversion design

• Turret integration design • Life extension study

• Collision, blast and vibration studies

• Independent verifications / Class Management

THE REFERENCES

ADVANCE 3D LASER SCANNING

FOR COMPREHENSIVE & DETAILED STORAGE TANK SURVEY / INSPECTION

Tranquil Marine Industry was equipped with these advances in software technology, 3D laser scanners back in December 2021. With a small dedicated team, we’ve gone through several software and hardware training sessions, before we proceed with several attempts to the Petronas Technical group throughout the year 2022.

After a series of discussions and presentations with Petronas Carigali (Malaysian O&G Owner and operator) for the technology acceptance and approval, from mid-2022, we’ve already started to Execute the Advanced 3d Laser Scanning for Tank Survey at a number of locations;

a. Petronas Fertiliser Kedah Terminal, Kedah

b. Petronas Terengganu Gas Terminal TGAST, Terengganu

c. Petronas Terengganu Crude Oil Terminal TCOT, Terengganu

d. Petronas Malaysia LNG Terminal MLNG, Bintulu, Sarawak

e. Petronas Sabah OGT Terminal, SOGT, Kimanis, Sabah

f. Petronas Bintulu Crude Oil Terminal, Bintulu, Sarawak

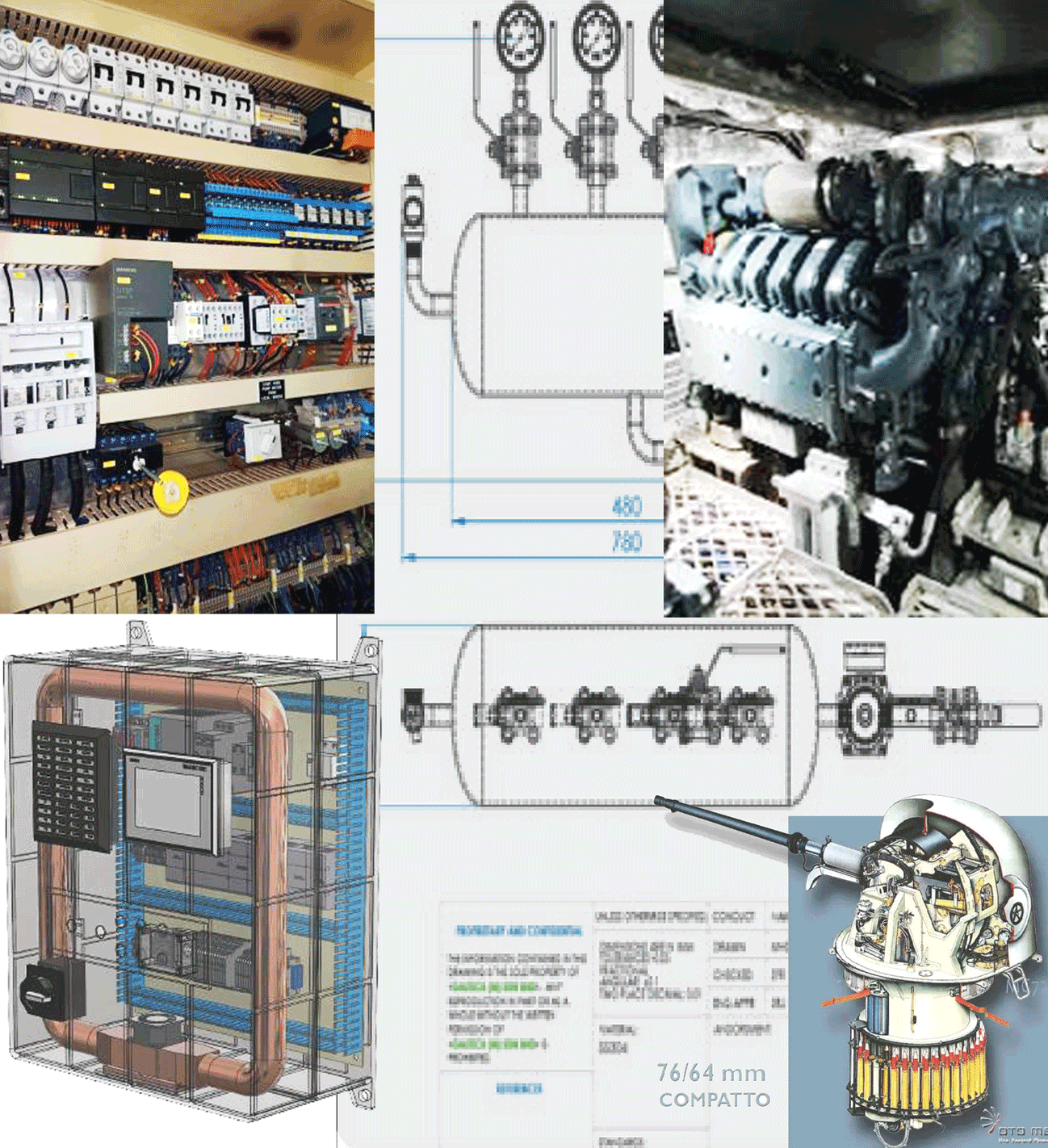

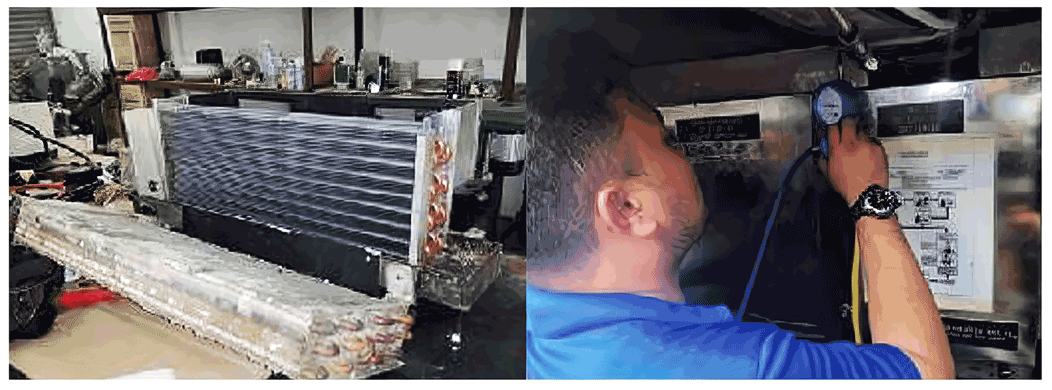

SYSTEM INTEGRATION

MECHANICAL AND INSTRUMENTATION SYSTEM

Refrigerant Leak Monitor provides the earliest level of detection of costly refrigerant gas leaks in mechanical equipment rooms. Sampling system with patented photoacoustic infrared (PAIR) technology detects leaks as low as 1 part per million (ppm). Intuitive, touchscreen user interface makes it easy to operate. Predictive maintenance and diagnostics keep you operational.

Basler Electric specialises in the production of custom-designed transformers for a wide range of applications, including power generation, distribution, and control.

GASENSOR TECHNOLOGY: GASENSOR is dedicated to safety monitoring gas and flame in a hazardous area and environment. The products range covered from Flame Detector with Infra-Red technology, Combustible Gas Detector with both Infra-Red and Combustion sensor approaches, and Toxic Gas Detector utilising the Electrochemical cell technology in line with current harsh and hazardous environment requirements.
